MERSCOPE High-Resolution Single-Cell In-Situ Spatial Transcriptomics Analysis Platform
Localize RNA transcripts at a sub-cellular level with ≤100 nm resolution.
Directly map and quantify the spatial distribution of hundreds to tens of thousands of RNA species in individual cells, without the need for downstream sequencing.
RNA and protein co-detection.
Samples include fresh, fixed frozen, or FFPE human and mouse tissue.
A complete end-to-end spatial genomics solution.
Detail
The MERSCOPE® Platform
Position yourself at the forefront of scientific discovery with the MERSCOPE? Platform, the industry’s first high plex, in situ single-cell spatial genomics solution. MERSCOPE uses MERFISH spatial transcriptomics technology to directly map and quantify the spatial distribution of hundreds to tens of thousands of RNA species in individual cells, without the need for downstream sequencing. MERSCOPE is incredibly versatile across applications and sample types, revolutionizing life sciences research.

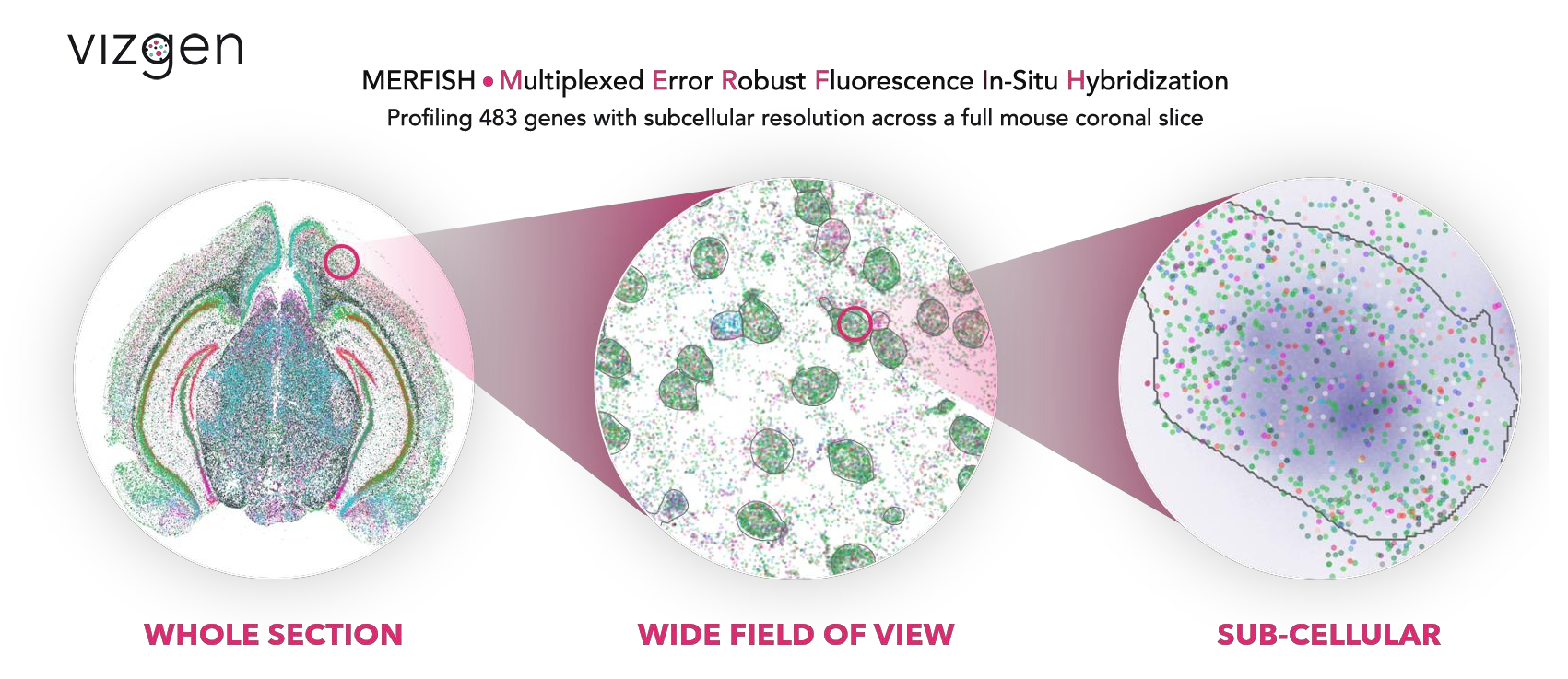

How MERFISH Works

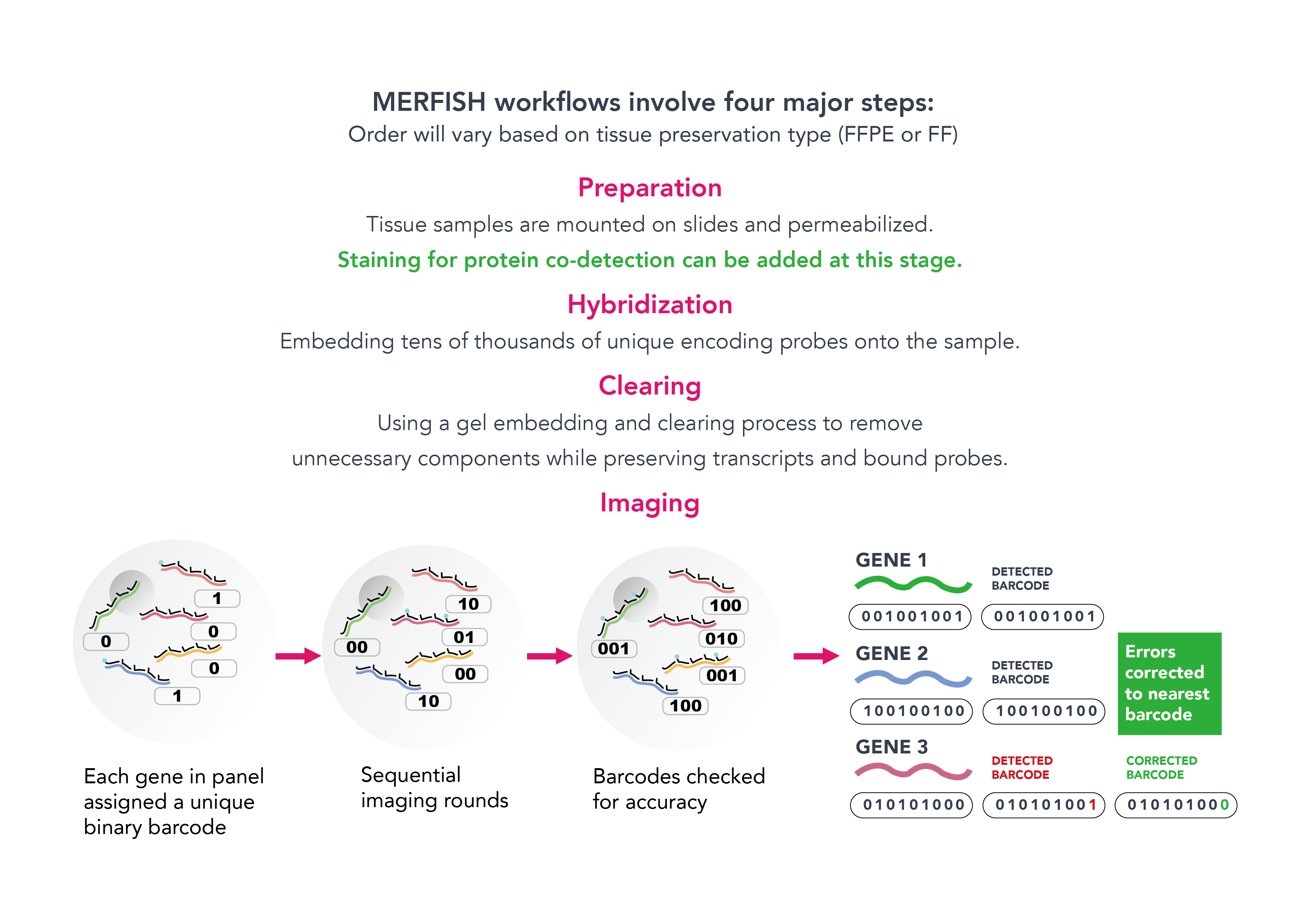

MERFISH technology expands on the capabilities of single molecule FISH (smFISH) by using combinatorial labeling, sequential imaging, and error-robust barcoding to detect RNA with sub-micron accuracy. This gives researchers a window into the intracellular organization of the transcriptome within every cell.
The system’s error-correcting barcoding scheme and combinatorial labeling ensure the highest detection accuracy of transcripts. If the background fluorescence does cause a readout error, the system can easily assign the readout to the nearest correct barcode. While MERFISH doesn’t require sequencing, the measurements taken with MERSCOPE correlate with bulk RNA-seq data and are highly reproducible between replicates. MERSCOPE provides a greater detection efficiency than array-based platforms, identifying 70x more transcripts per gene.
A Complete Spatial Transcriptomics Solution
We integrated MERFISH spatial transcriptomics technology with high resolution spatial imaging, fluidics, image processing, and automation to deliver a complete end-to-end spatial genomics solution. The MERSCOPE? Platform comes with everything your lab needs to get started with spatial imaging. We built our expertise into every component of the system so you can easily obtain and analyze high-quality MERFISH measurements.

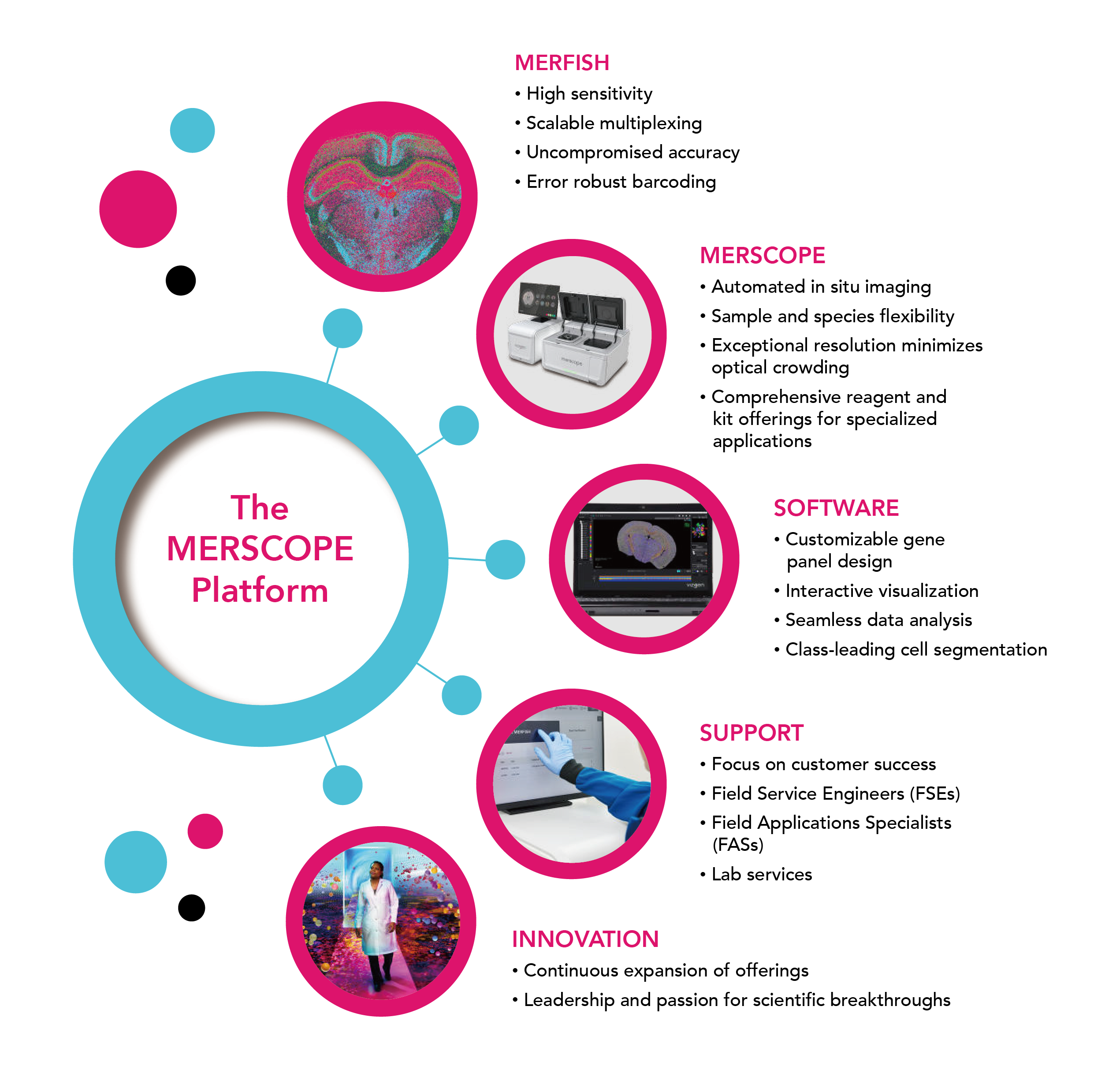

The MERSCOPE? Platform is comprised of:

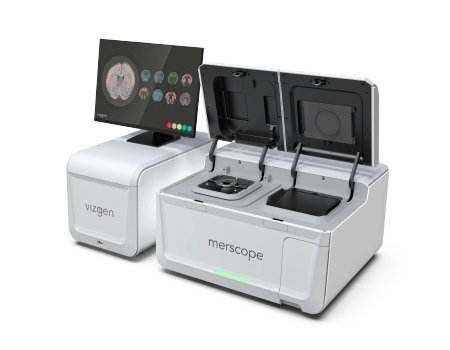

MERSCOPE Instrument & Analysis Computer
Intuitive Instrument and Visualization Software
MERSCOPE Reagents & Consumables
Features of the MERSCOPE® Platform
HIGH CELL THROUGHPUT
Profile up to several hundred thousand cells in a single sample at low cost per cell
FLEXIBILITY

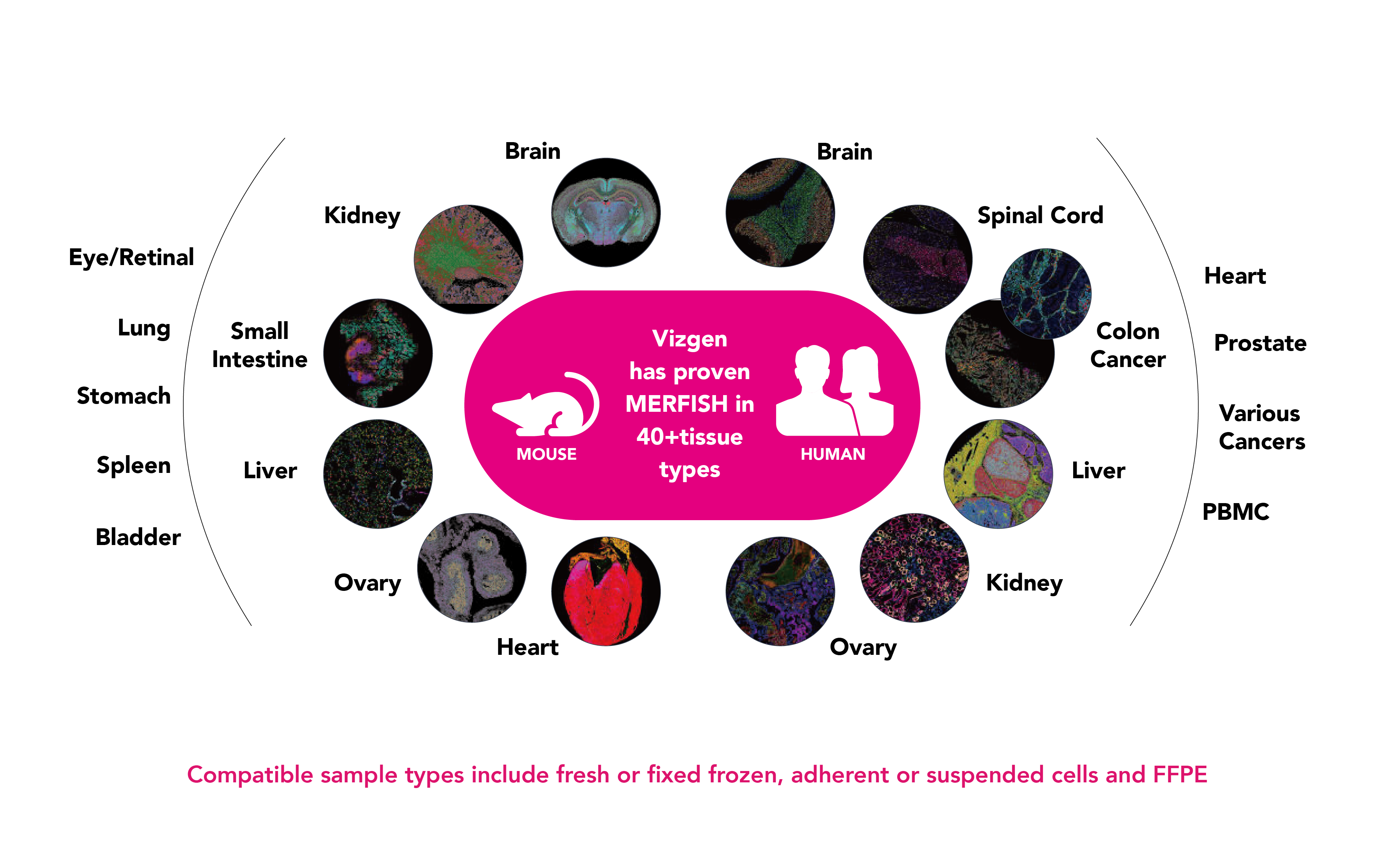

Ability to run on many sample or tissue types, including fresh, fixed frozen, or FFPE human and mouse tissue
EFFECTIVE MULTIPLEXING
Cover 1000 genes in a single sample with custom gene panel design, imaging 1 cm2 area in ~1 day
100-NM RESOLUTION
From whole tissue section to single-cell and sub-cellular imaging. Localize RNA transcripts at a sub-cellular level with ≤100 nm resolution.
UNPARALLELED SENSITIVITY
Highest detection efficiency for capturing RNA transcripts, even for lowly expressed genes
EXCEPTIONAL OPTICS
High-resolution optics result in single transcript spots appearing compact, enabling better discrimination between spots and more unique transcripts detected per cell
EASY OF USE
Intuitive automation and complete reagent packs allow for a walk-away system.
The Applications
MERFISH is a game-changing technology in single-cell genomics and has broad applications in both fundamental biology and medicine, ranging from basic science, to drug discovery, to clinical pathology. Given its ability to quantify RNAs across a wide range of abundances while preserving native context, MERFISH enables many applications of in situ transcriptomic analyses of individual cells in culture or complex tissues.
